Main features

• press structure in high resistance steel, fully checked using ultrasound. Welding with pre-heat, subjected to magnetoscope inspection.
Final distensional annealing treatment to increase stress resistance.
• main cylinders in forged steel normalized and checked using ultrasound
• mobile plate with low pressure rapid lifting and lowering movement using external cylinders.
The large diameter central piston provides a maximum thrust during the embossing or ironing phases
• electronically-controlled hydraulic pump to limit electricity consumption
• air-oil heat exchanger to ensure constant performance over time
• pressured oil filtering and high quality components to ensure reliability of hydraulic system
• pneumatic attachment of the work plate for rapid changing of the same
• heated upper plate with independent temperature control in 5 separate zones
• full stainless steel housing of the central area in contact with the hide for increased safety and cleanliness
• 4-vent suction system for aspiration of vapours produced when embossing damp hides
• Two or three standard choices for size of plates. Other sizes available on request
• operator interface with 10” colour touch-screen. Display, control and adjustment of all working parameters.
 Analogue type display of pressure and times for faster control.
Dedicated programme and automatic adjustment of parameters in partial load embossing (hides embossed in two strikes).
 Some recurrent cycles already pre-set (plate change, low pressure ironing etc.)
• continuously self-checking, optical-electronic front safety barriers for maximum operator safety.
 All the components relative to operator safety are classified as category 4, the strictest category for current legislation.

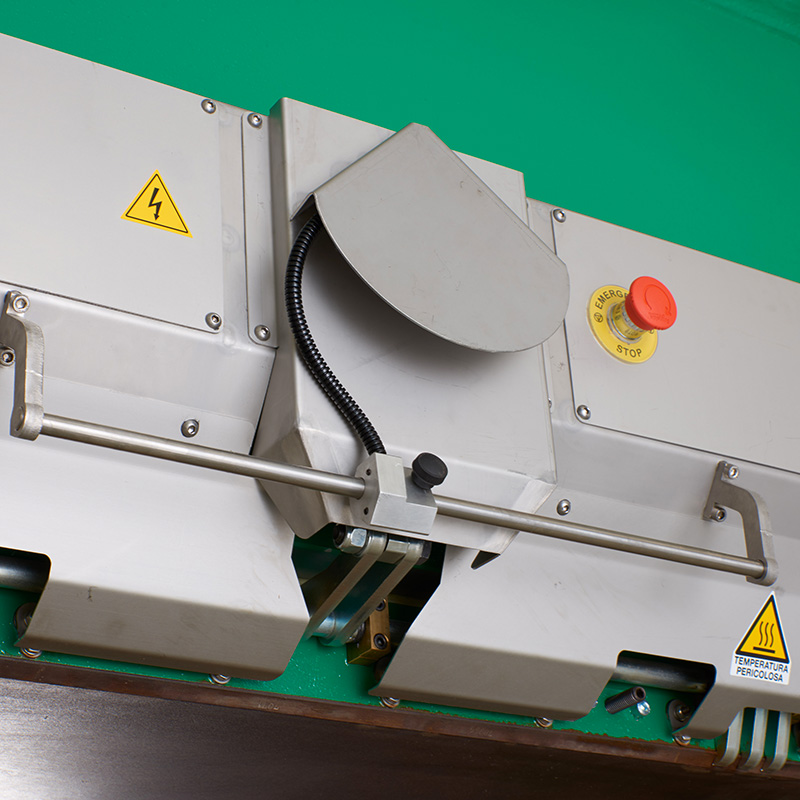

• lateral safety barriers with electric safety edge for protection of fingers during the completion of embossing (joining)
• diagnostics of main functions with relative alarms displayed
• pedal-operated open/close commands to enable the hide to be held with two hands

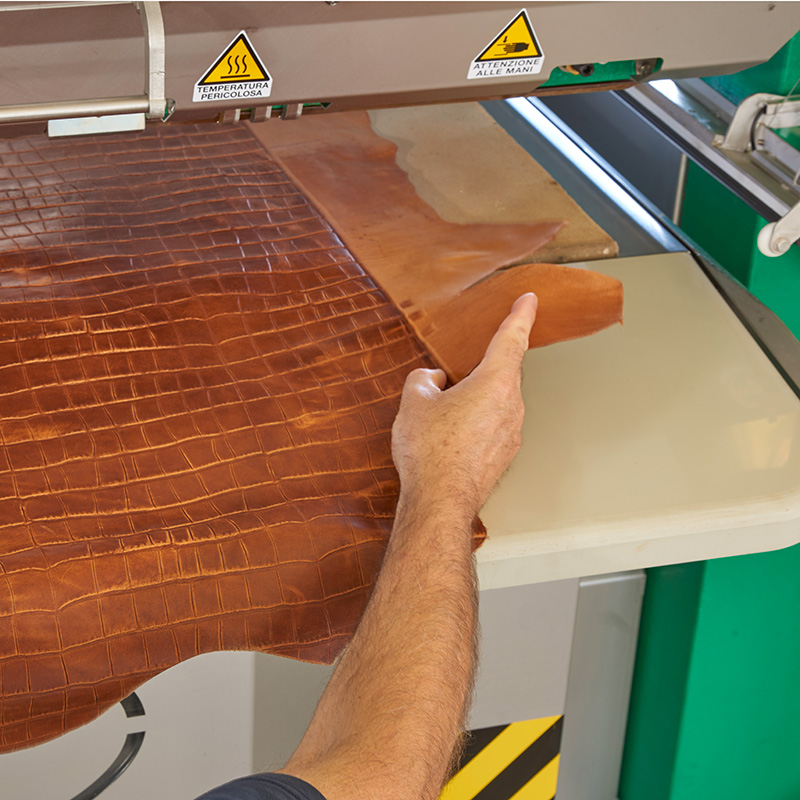

• distance, at rest, between the plates of approx. 160 mm for easy spreading out of the hide being processed
• upon request, adjustable laser pointing device
We are willing to design and produce special versions upon request

Technical features

All the technical data shown in this brochure is purely indicative and not binding.
S.C. Costruzioni Meccaniche s.r.l. reserves the right to vary the characteristics of its products without warning. All rights reserved.
